원래 장소:
중국 선전
브랜드 이름:
Polcd
인증:
RoHS, ISO9001
모델 번호:
P028B122-IPS
연락주세요
Description:

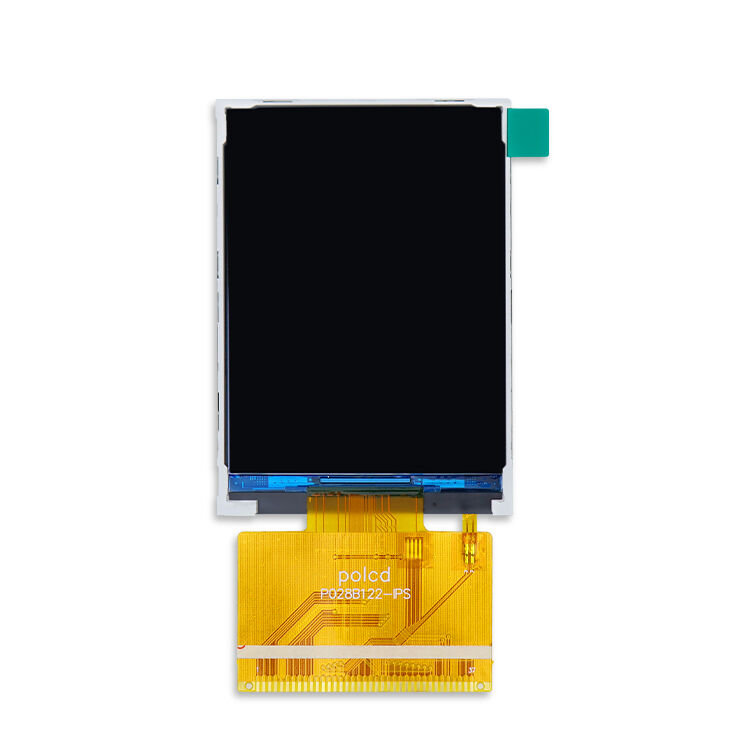

2.8 inch IPS TFT LCDs are commonly used in various electronic devices, including handheld gaming devices, industrial controllers, portable multimedia players, medical devices, and automotive displays, among others. Their compact size, high-quality display performance, and low power consumption make them a reliable and versatile display solution for various applications. The customizable display driver in some models also allows for greater flexibility and control over the display performance and features, making them suitable for a wide range of applications.
Parameter:
|
Model |
P028B055-IPS |
|
Screen Size |
2.8 inch |
|
Number of Pixel |
240RGB(H)x320(V) |
|
Display area |
43.20(H)x57.60(V)mm |
|
Pixel pitch |
0.06(H)x0.18(V)mm |
|
Pins |
15 pins |
|
Outline Dimension |
50.00x69.20x2.30mm |
|
Pixel arrangement |
RGB Vertical Stripe |
|
Display mode |
Normally Black |
|
Viewing Direction(eye) |
ALL |
|
Display Color |
262K |
|
Luminance(cd/m2) |
300 nit |
|
Contrast Ratio |
800:1 |
|
Interface |
4-wire SPI |
|
Back-light |
LED Side-light type |
|
Drive IC |
ST7789V |
|
Operation Temperature |
-20~70℃ |
|
Storage Temperature |
-30~80℃ |
